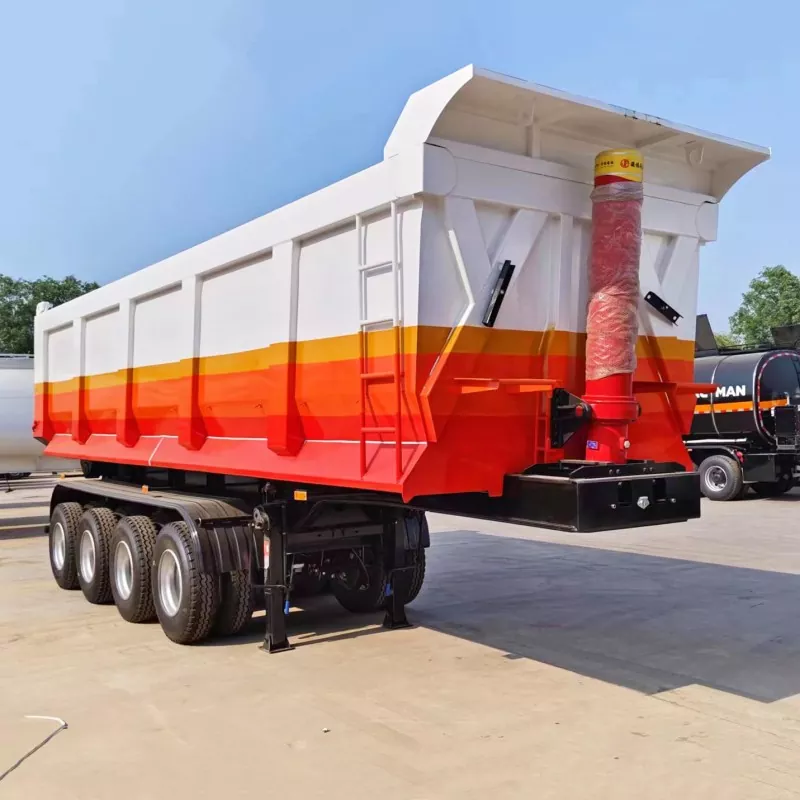

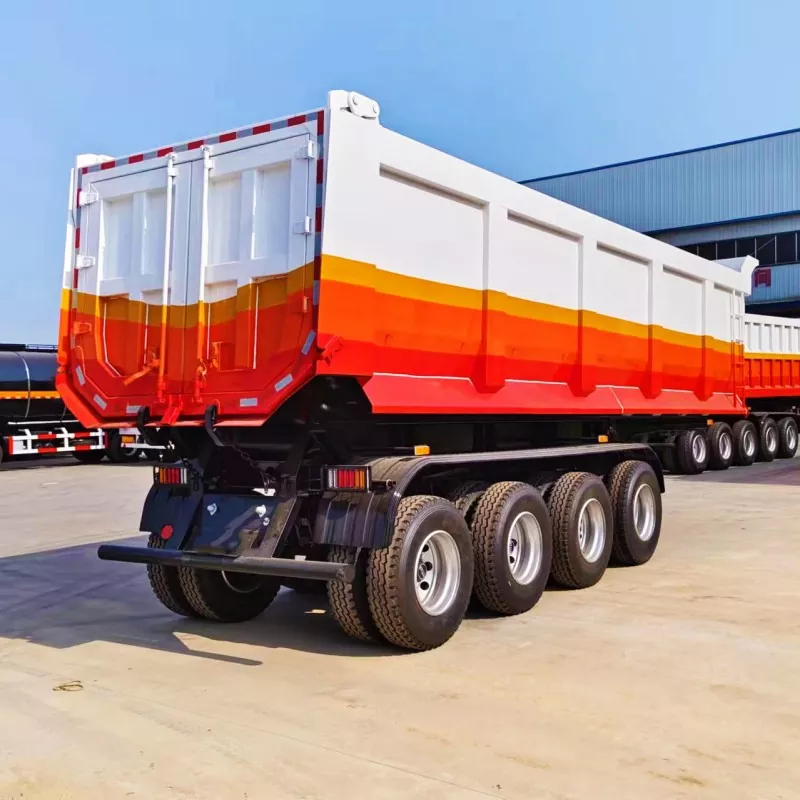

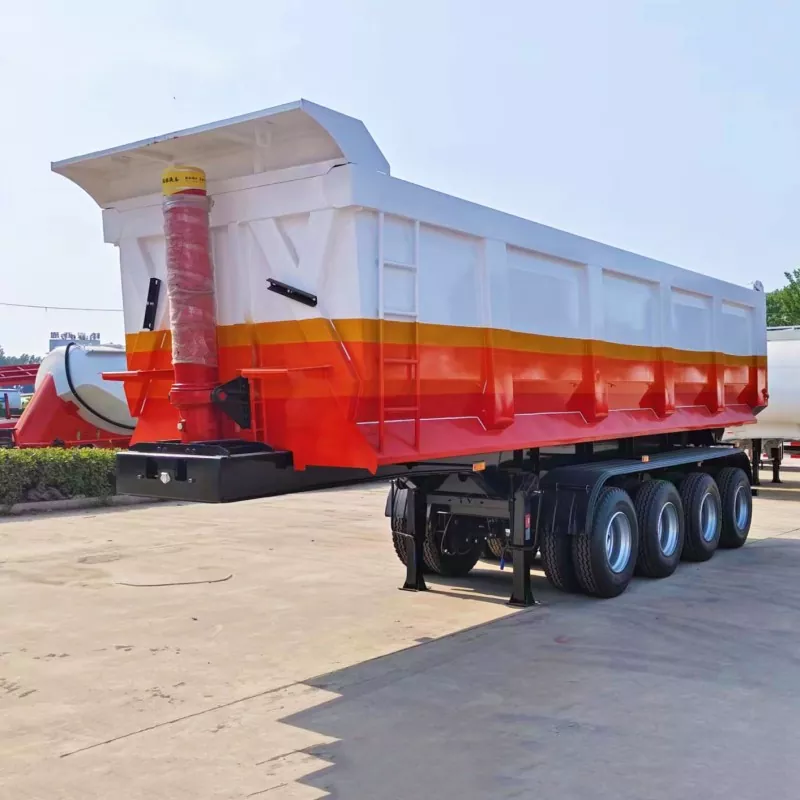

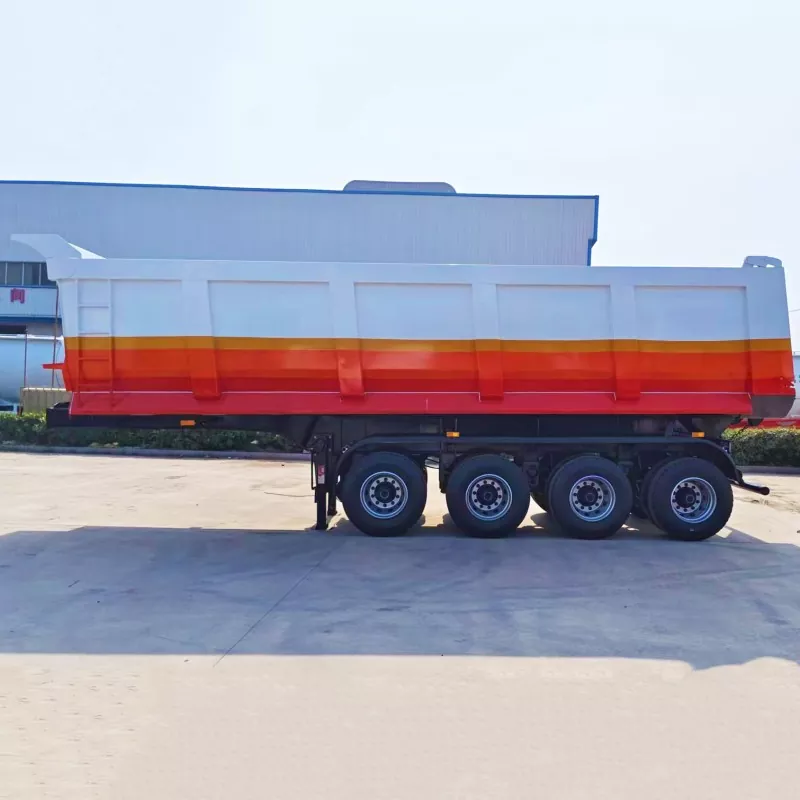

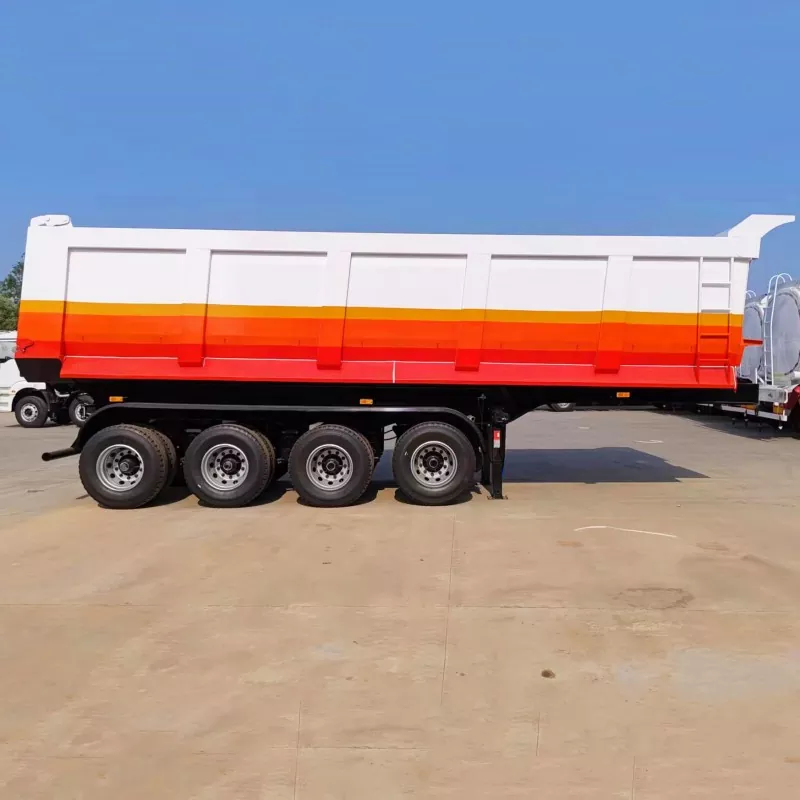

40Cubic Meter Hydraulic Dump Trailer

The 40cubic meter hydraulic dump trailer designed by trusted Chinese trailer supplier DERUN is a versatile and durable transportation solution that meets the needs of different industries. It combines high capacity, hydraulic lifting capability and rugged construction, making it a valuable asset for any operation that requires efficient material transportation and handling. Whether you need to transport materials on a construction site or goods over long distances, the 40 cubic meter hydraulic dump trailer is a reliable choice.

Send Inquiry

Product Description

For those looking for a powerful and efficient transportation option, DERUN durable 40cubic meter hydraulic dump trailer offers impressive capacity and a rugged design. This trailer is designed to withstand harsh working conditions and frequent use, making it a top choice for contractors and fleet managers who prioritize durability and performance.

40Cubic Meter Hydraulic Dump Trailer Introduction

DERUN 40cubic meter hydraulic dump trailer is equipped with a hydraulic system for controlled and safe dumping of materials. The hydraulic lifting mechanism ensures that the contents of the trailer can be unloaded quickly and efficiently, saving time and effort compared to manual methods. Constructed from heavy-duty materials, DERUN 40cubic meter hydraulic dump trailer is designed to carry large loads over a variety of terrain, including unpaved roads and construction sites.

40Cubic Meter Hydraulic Dump Trailer Parameter (Specification)

Box Body
Dimension	10000mm×2500mm×3700mm (The final size is according to the drawing)
Box size（Inner Size）	9300mm×2300mm×1900mm
Tare Weight	About 13500kg
Total Volume (m³)	40 m³
Side wall thickness	6 mm (Imported wear-resistant steel)
Bottom plate thickness	8 mm (Imported wear-resistant steel)
Lifting system	Full set of HYVA Hydraulic Lifting Cylinder (imported with original packaging)
Chassis
Axle	4pcs, 13T/16T, BPW/FUWA /DERUN
Landing Gear	JOST E100, double speed type;
King Pin	JOST 2.0/3.5 inches king pin
Suspension	Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type)
Leaf Spring	90(W)mm×16(Thickness)mm×10 layers， 8 sets
Pneumatic Braking System	Dual lines air brake system with WABCO valve；with ABS
Rim	8.5-22.5, 16 pcs rims;
Tire	12R22.5, 12.00R20,315/80R22.5,16 pcs
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anti-corrosive primer and 2 layers of topcoats.
Color	Optional, to be determined by customer
Accessories	One standard tool box, one spare tire carrier.

40Cubic Meter Hydraulic Dump Trailer Feature And Application

In the construction industry, DERUN 40cubic meter hydraulic dump trailer is essential for transporting materials such as sand, gravel and debris. It is also widely used in agricultural environments for transporting crops and other agricultural products. The trailer's large capacity and hydraulic dumping capabilities make it equally suitable for industrial applications that require efficient movement and handling of bulk materials. For example, in mining operations, DERUN 40cubic meter hydraulic dump trailer can be used to transport mined minerals to processing areas.

40Cubic Meter Hydraulic Dump Trailer Details

DERUN 40cubic meter hydraulic dump trailer has a variety of features that enhance its utility and convenience. Its body is usually made of wear-resistant materials to ensure a long service life, even with constant exposure to abrasive materials. The hydraulic system is driven by a high-performance pump that generates enough pressure to lift the compartment and empty its contents with minimal effort. In addition, trailers are often equipped with safety features such as reflective markings and warning lights to improve visibility in low-light conditions, thus contributing to safer operation.
