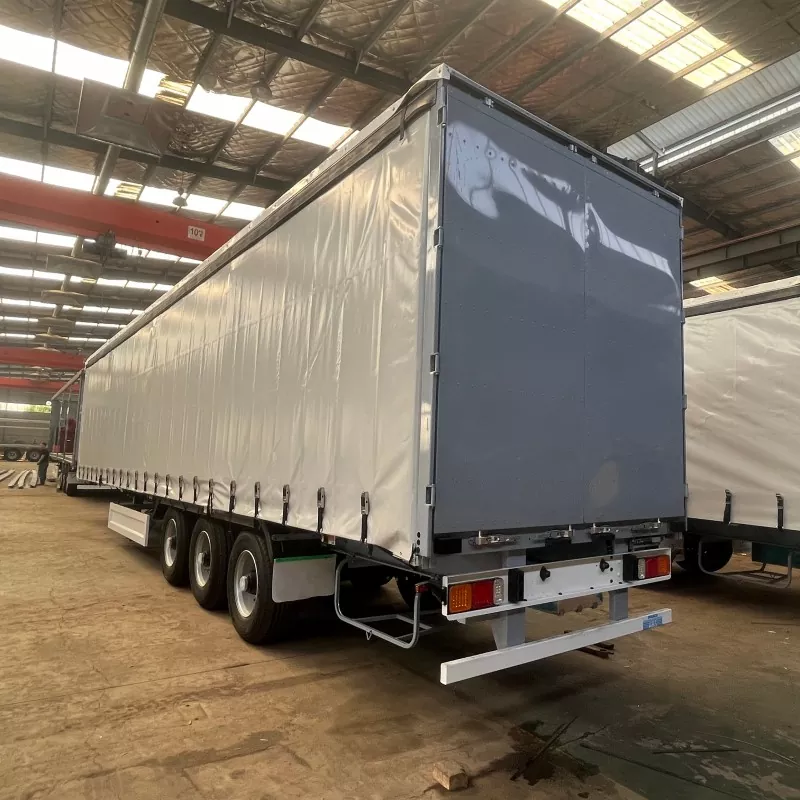

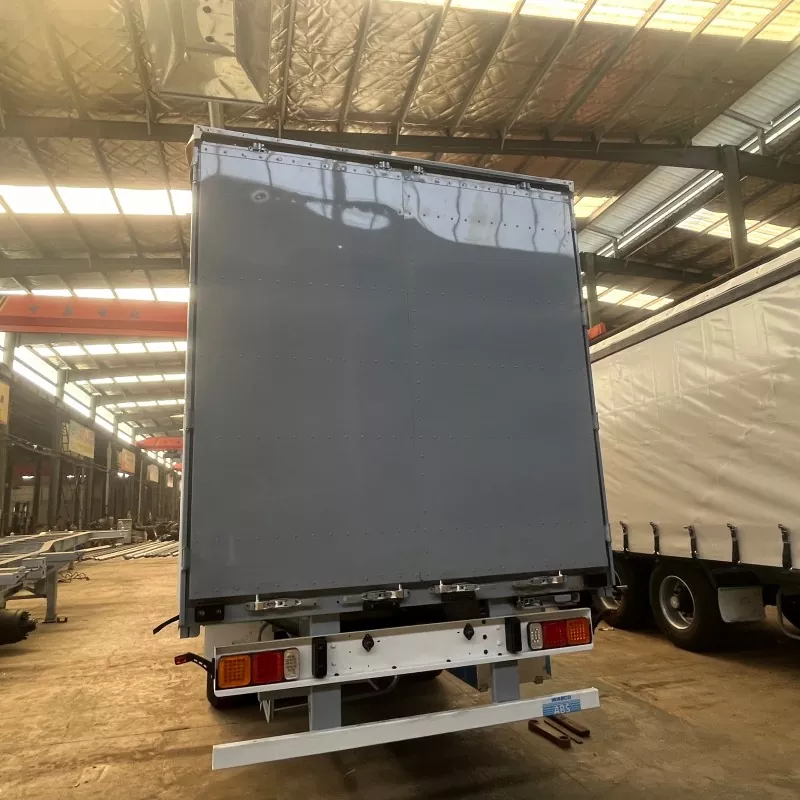

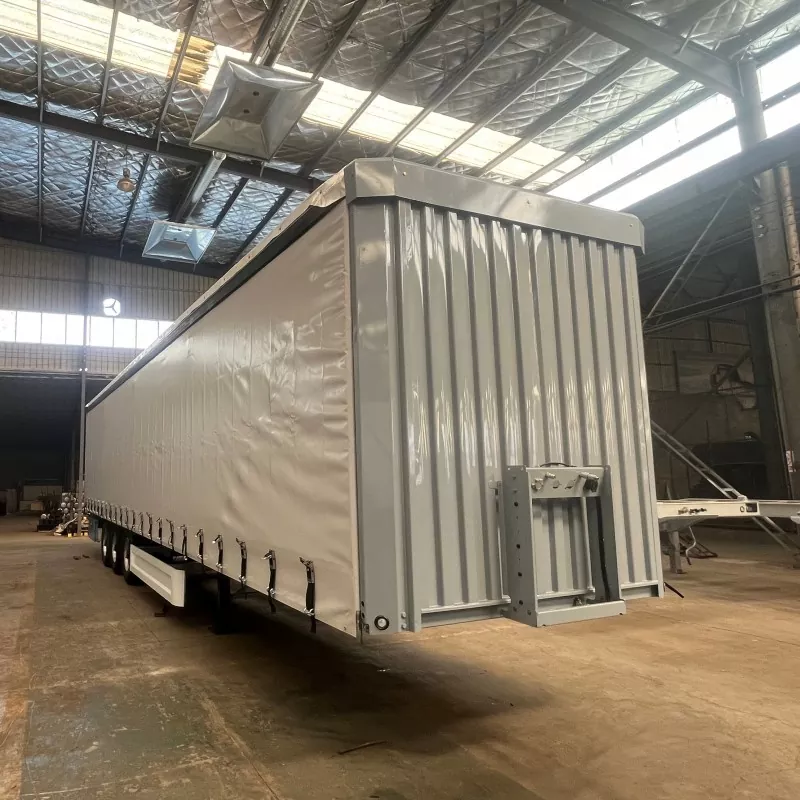

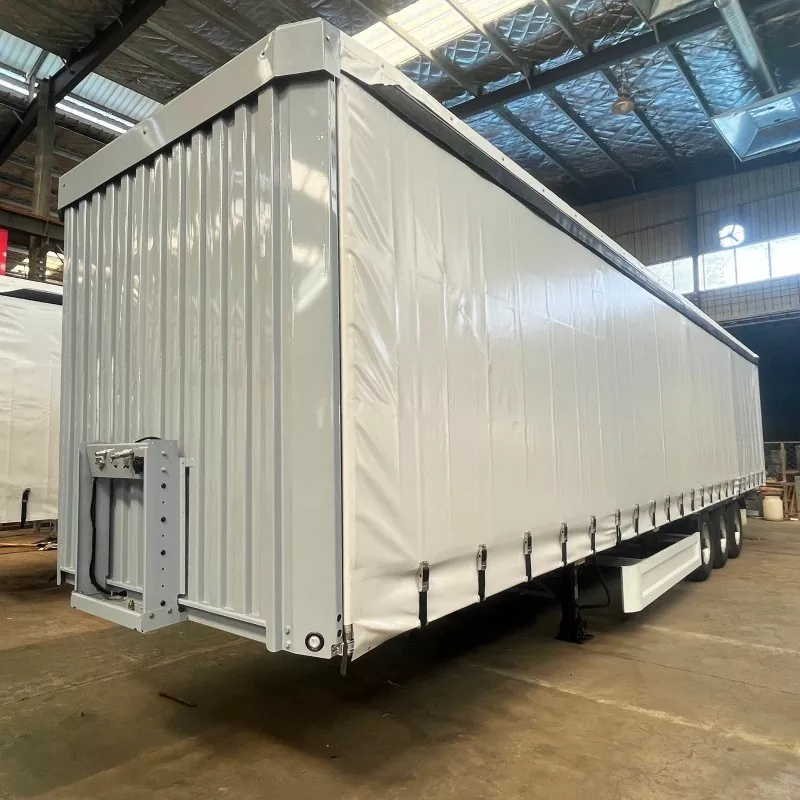

60 Ton Curtain Side Trailer

As a manufacturer specializing in 60 ton curtain side trailer, you can confidently purchase one from our factory, with DERUN guaranteeing you excellent after-sales service and punctual delivery. If you would like to purchase it, feel free to contact us!

Send Inquiry

Product Description

DERUN hot selling 60 ton curtain side trailer is designed to handle a wide range of cargo that needs to be weatherproof and easy to load and unload. Its high payload capacity makes it ideal for transporting heavy machinery, construction materials and large quantities of consumer goods. The side curtain design provides quick access to the cargo area, simplifying operations and reducing downtime.

60 Ton Curtain Side Trailer Introduction

DERUN 60 ton curtain side trailer is constructed of high-strength materials to withstand the rigors of heavy-duty use, ensuring durability and longevity. The side curtains are made of weather-resistant fabric and can be rolled back or removed completely for easy loading and unloading. The trailer's sturdy frame and suspension system is designed to handle uneven terrain and provide a smooth ride, ensuring that cargo arrives intact.

60 Ton Curtain Side Trailer (Specification)

Outside Dimension

13000*2550*4000mm

Height of main stringer

450mm

Thickness of upper and lower wings

12/14mm

Vertical plate thickness

8mm

front place

Steel (front: electrical gantry bracket)

ceiling

Manual translation open and close, cord fabric 650g

back door

Aluminum alloy, double door (split in the middle)

Axles

13T*3 disc brake, ABS on two axes. Air suspension 3-axis German suspension

bottom plate thickness

28mmWaterproof phenolic flooring (double sided)

Tires

385/65R22.5*6pcs

Rim

11.75R22.5*6pcs

landing gear

FUWA 28T two-speed

The hook on the bottom plate

28pcs

King pin

JOST 50mm, bolt type

Tool box

600mm aluminum door tool box ,1unit

Column、cross bar、side board

Steel, column (3+3), 4+4 cross bars on both sides (120mm height each), mobile cross bars can be used to move down the bar plate

ABS

ABS,WABCO

light

LED

spare wheel carrier

2 units

Air chamber

6 doubles

Side curtain

Double side, cord fabric 900g

Electric System

24V，7-hole socket

Color

silver gray

Note: 1. the weight of the vehicle is about 8.5 tons 2. the front electrical road gantry bracket (such as Russia) 3. side protection and rear protection: steel 4. relay valve 4 holes5. 3 units gas cylinders

60 Ton Curtain Side Trailer Feature And Application

Across industries, DERUN 60 ton curtain side trailer is an important part of logistics operations. Construction companies use it to transport materials such as beams, pipes and large equipment to building sites. Manufacturers appreciate its ability to transport assembled products to distribution centers or directly to retailers. In addition, agribusinesses find it useful for transporting harvested crops or feed. The trailer's flexibility also makes it well suited for general cargo transportation, where fast and efficient cargo handling is critical.

60 Ton Curtain Side Trailer Details

DERUN 60 ton curtain side trailer is equipped with a variety of features that enhance its performance and usability. The side curtains are supported by a sturdy frame that can be quickly opened and closed to access the entire length of the trailer. The floor of the trailer is typically made of non-slip material to ensure cargo stability during transportation. Advanced lighting systems and reflective markings increase the trailer's visibility on the road, helping to improve driving safety. The braking system is designed to manage the weight of the trailer when fully loaded, providing reliable braking power.
