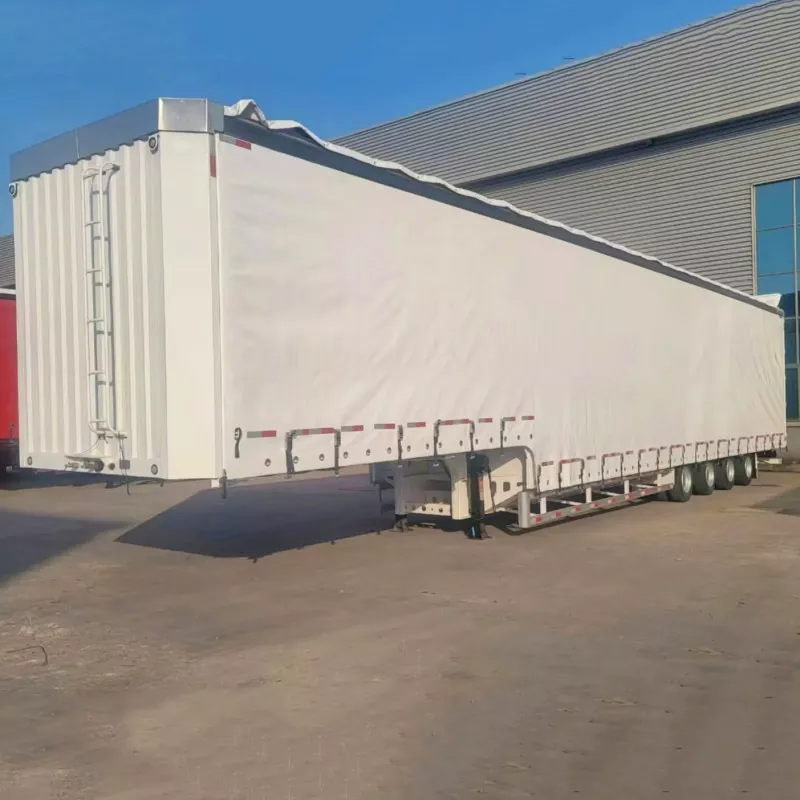

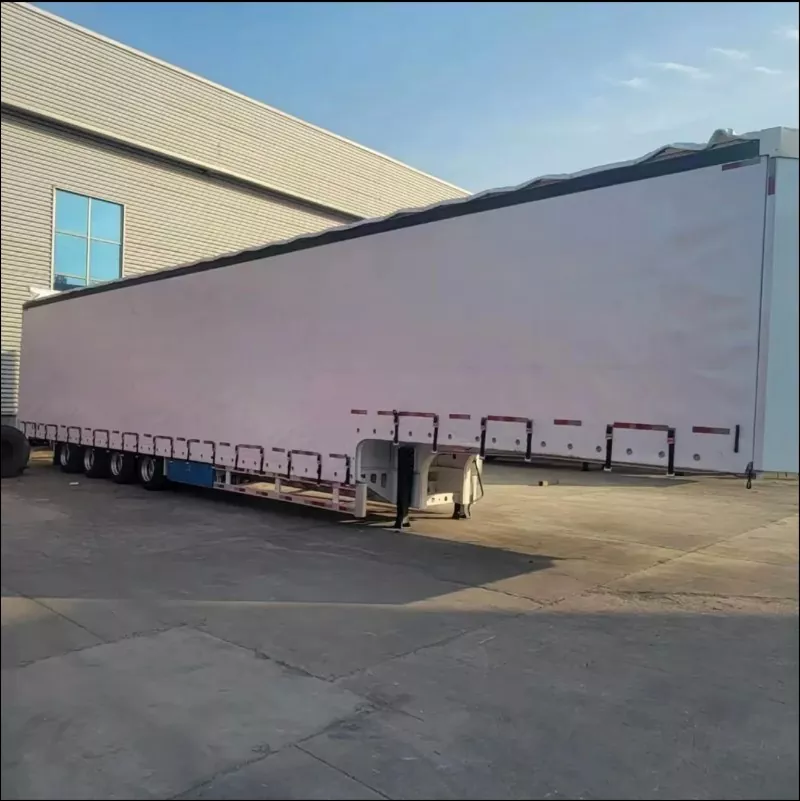

4 Axle Curtain Side Semi Trailer

DERUN is a leading manufacturer and supplier of 4 axle side curtain semi trailer in China. If you have any interest in our 4 axle side curtain semi trailer products, please feel free to reach out to us. We prioritize quality and offer prices that are fair and reasonable, along with dedicated service.

Send Inquiry

Product Description

DERUN 4 axle side curtain semi trailer stands out for its ability to carry large loads while providing easy access to cargo through the side curtain design. DERUN 4 axle side curtain semi trailer is suitable for a wide range of applications, ensuring that cargo is protected from inclement weather while still being easily loaded and unloaded.

4 Axle Curtain Side Semi Trailer Introduction

DERUN 4 axle side curtain semi trailer is designed with durability and functionality in mind. It is designed with a sturdy chassis to support the side curtains, which can be quickly opened or closed as needed for the cargo being transported. The addition of four axles for added stability makes the trailer a reliable choice for transporting heavy and bulky loads.

4 Axle Curtain Side Semi Trailer (Specification)

Outside Dimension

13000*2550*4000mm

Height of main stringer

450mm

Thickness of upper and lower wings

12/14mm

Vertical plate thickness

8mm

front place

Steel (front: electrical gantry bracket)

ceiling

Manual translation open and close, cord fabric 650g

back door

Aluminum alloy, double door (split in the middle)

Axles

13T*3 disc brake, ABS on two axes. Air suspension 3-axis German suspension

bottom plate thickness

28mmWaterproof phenolic flooring (double sided)

Tires

385/65R22.5*8pcs

Rim

11.75R22.5*8pcs

landing gear

FUWA 28T two-speed

The hook on the bottom plate

28pcs

King pin

JOST 50mm, bolt type

Tool box

600mm aluminum door tool box ,1unit

Column、cross bar、side board

Steel, column (3+3), 4+4 cross bars on both sides (120mm height each), mobile cross bars can be used to move down the bar plate

ABS

ABS,WABCO

light

LED

spare wheel carrier

2 units

Air chamber

6 doubles

Side curtain

Double side, cord fabric 900g

Electric System

24V，7-hole socket

Color

silver gray

Note: 1. the weight of the vehicle is about 8.5 tons 2. the front electrical road gantry bracket (such as Russia) 3. side protection and rear protection: steel 4. relay valve 4 holes5. 3 units gas cylinders

4 Axle Curtain Side Semi Trailer Feature And Application

DERUN 4 axle side curtain semi trailer is widely used to transport goods that need to be protected from the elements but require fast loading times. Industries such as construction, manufacturing and retail find the 4-axle side curt insider an invaluable asset because of its ability to efficiently handle a wide range of cargo types. Whether it's transporting building materials to a construction site or palletized goods to a warehouse, the trailer has proven to be a versatile and reliable solution.

4 Axle Curtain Side Semi Trailer Details

DERUN 4 axle side curtain semi trailer is equipped with a variety of features that enhance its performance and availability. Constructed of durable, weather-resistant materials, the side curtains can be easily rolled back or removed to allow access to the entire length of the trailer. The interior of the trailer is equipped with tie-down rails and anchor points to secure cargo and ensure items remain stable during transportation.
