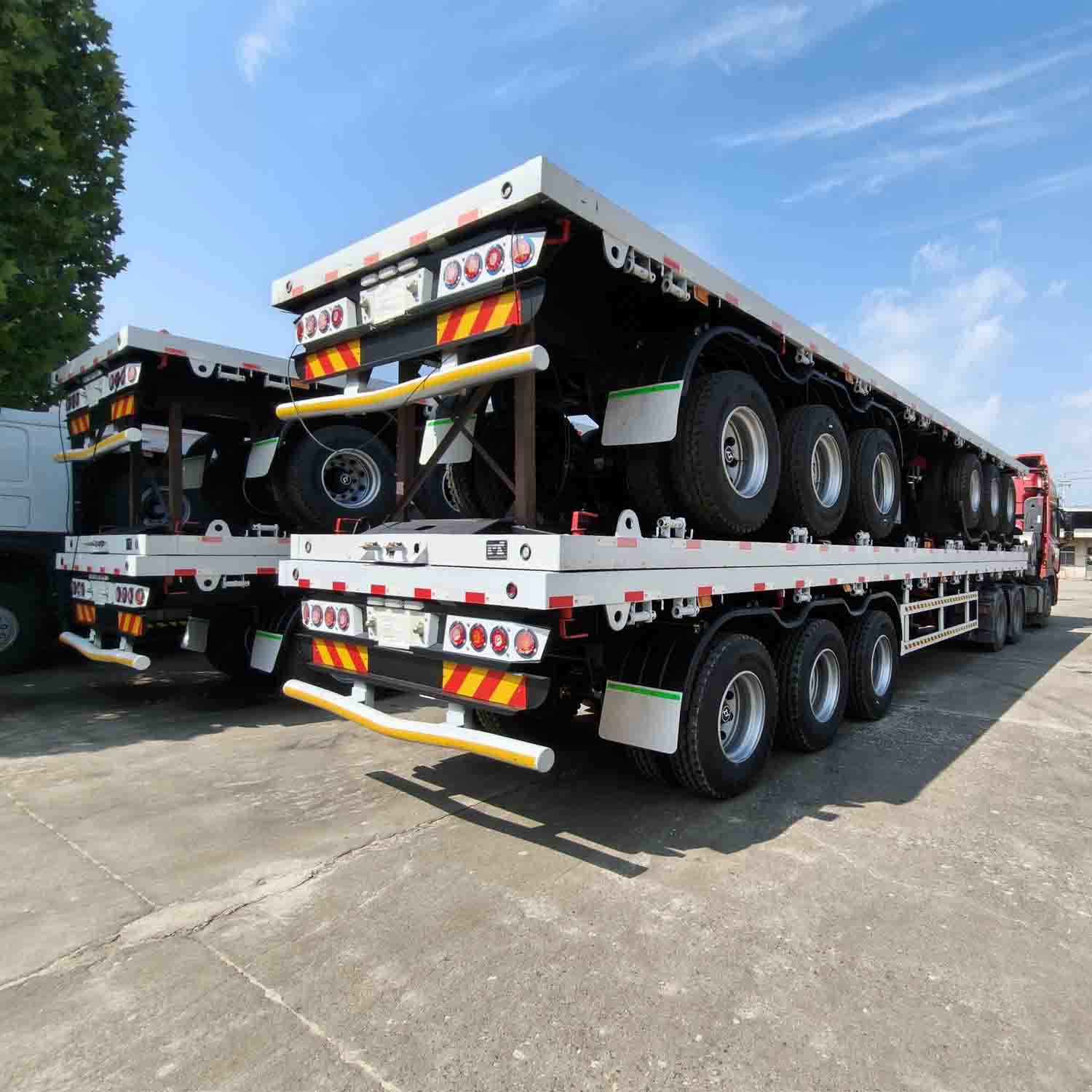

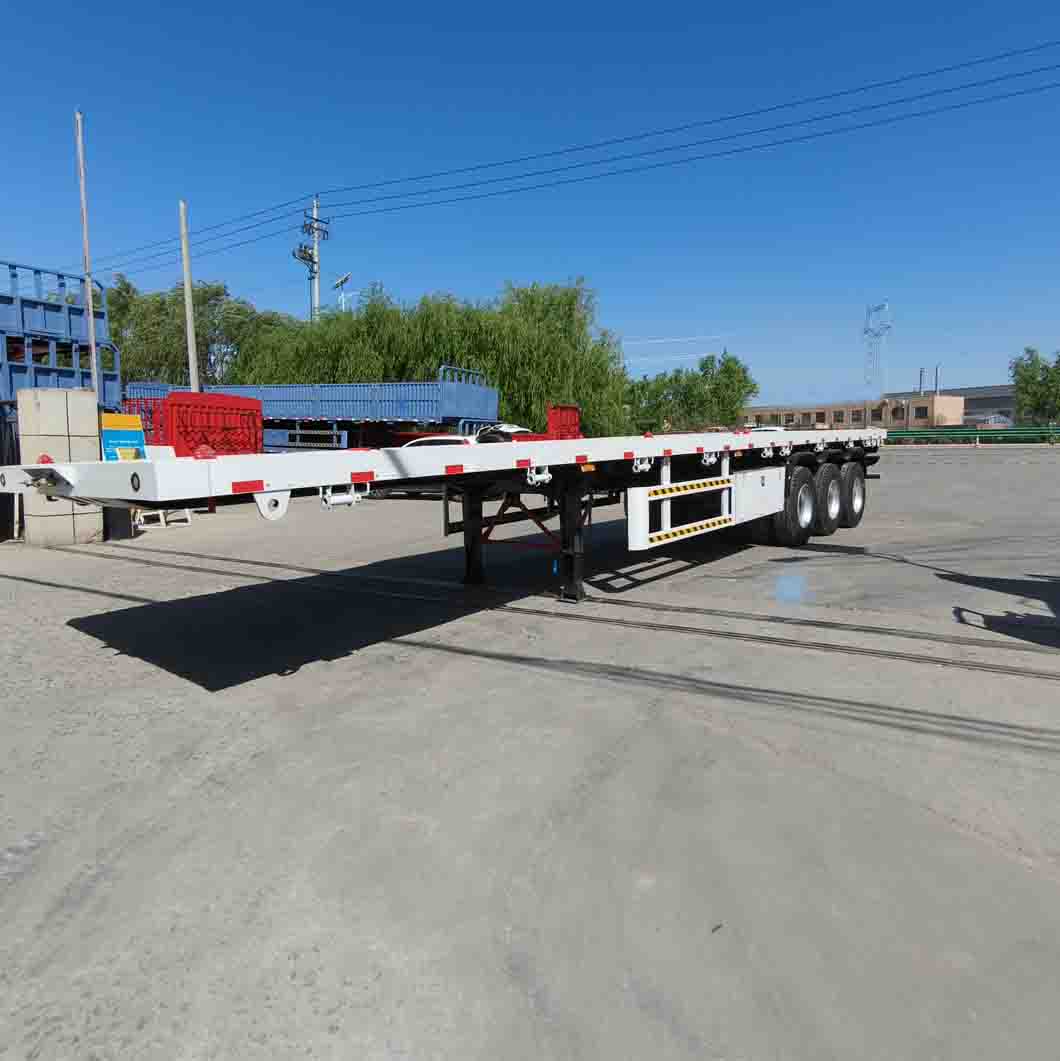

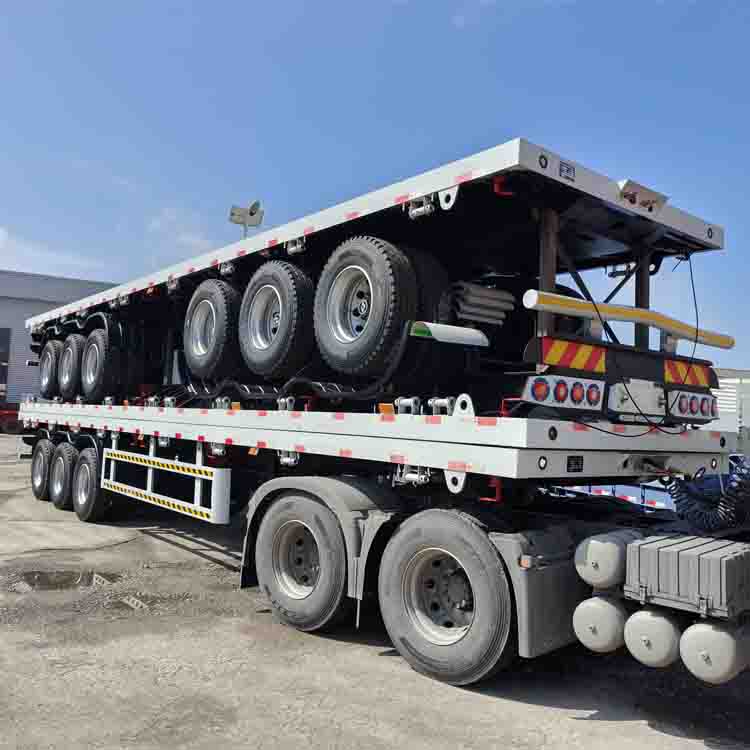

Derun tri-axle flatbed semi-trailer is a high-end logistics equipment designed for efficient and heavy-duty transport. It combines modern manufacturing technology with advanced design concepts, aiming to provide users with excellent load-carrying performance, stable driving experience and long service life. The body structure made of high-strength steel ensures the safety and reliability of the vehicle under heavy-duty conditions, while the optimised aerodynamic design reduces wind resistance and improves fuel economy.
3 Axle Flatbed Semi Trailer Designed for Tanzania made of high-quality alloy steel plates, which are spliced together through advanced welding process to form a strong and durable overall frame. Equipped with high-performance air suspension or mechanical suspension system, the body height can be automatically adjusted according to different road conditions, ensuring smooth driving and reducing the risk of cargo damage.Adopting advanced ABS anti-lock braking system, together with disc brakes, it provides fast and precise braking effect and enhances driving safety.Low rolling resistance tyres are fitted as standard to reduce energy consumption; the three-axle design disperses the weight of the vehicle and improves road adaptability, and the axles are made of high-strength alloys with high load-bearing capacity.Optional accessories such as hydraulic tailgate, side guardrail, non-slip floor, etc. can be installed to meet the loading requirements of different goods.
Dimension (mm) |
12500mm*2500mm*1550mm or customized size |
Tare Weight |
6.5-7 Ton |
Payload |
40T-80T |
Main Beam |
Q 345B high quality Carbon Steel |
Beam height 500 mm, Upper plate 14 mm, lower plate 16 mm: Middle plate 8 mm |
|
Platform |
3/4mm pattern board |
Twist Locks |
12 pcs container lock |
Axles |
3 pcs, 13T16T, BPW/FUWA /DERUN |
King Pin |
2 or 3.5 inch |
Leaf Spring |
90*13-10layer, 6 sets |
Suspension system |
Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type) |
Tire |
12R22.5, 12.00R20,315/80R22.5,12 pcs |
Landing Gear |
Standard 28Ton, JOST brand |
Brake system |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional |
Electrical system |
1. Voltage:24V, LED lights |
2. Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
3. Receptacle: 7 wires |
Derun three-axle flatbed semi-trailer is widely used in the long-distance transport of all kinds of heavy goods, including but not limited to:
Industrial manufacturing: inter-regional transport of large machinery and equipment, heavy parts and components.
Construction: distribution of steel, cement, prefabricated components and other construction materials.
Agricultural field: relocation of agricultural equipment such as large agricultural implements and harvesters.
Energy and minerals: transport of oil drilling equipment, coal, ore and other bulk goods.
Logistics and warehousing: the transfer of large containers and cargo containers.
Anti-corrosion treatment: The body is treated with multi-layer anticorrosion treatment, effectively resisting the erosion of bad weather and corrosive substances, and prolonging the service life.
Easy maintenance design: key components are easy to check and replace, reducing maintenance cost and time.
Customised services: Provide services customised according to customers‘ specific needs, including size adjustment, installation of special accessories, etc., to ensure that the vehicle perfectly matches customers’ transport needs.
Environmental protection and energy saving: adopting low energy consumption design, in line with international environmental protection standards, helping green logistics.
