40 FT Flatbed Semi Trailer Designed for Central Asia

This flatbed semi-trailer designed for the Central East market adapts to the complex road conditions in Saudi Arabia and is equipped with an advanced suspension system to ensure smooth cargo. With high energy efficiency and easy maintenance, it is an ideal choice for logistics transport in Central East.

Model:QDR9400TDP

Send Inquiry

Product Description

Derun Vehicle's flatbed semi-trailer, which is carefully designed for the Middle East market, has become the first choice for logistics transport in the region due to its excellent adaptability, carrying capacity and high efficiency.

Flatbed Semi Trailer Introduction

Derun flatbed semi-trailer adopts a streamlined design, which is not only aesthetically pleasing, but also helps to reduce the wind resistance during travelling and improve the fuel economy. The body is made of high-strength steel, which is durable and can easily cope with the complex and changing road conditions and climate in the Middle East.

Flatbed Semi Trailer Specification

Dimension (mm)	12500mm2500mm1550mm or customized size
Tare Weight	6.5-7 Ton
Payload	40T-80T
Main Beam	Q 345B high quality Carbon Steel
Main Beam	Beam height 500 mm, Upper plate 14 mm, lower plate 16 mm: Middle plate 8 mm
Platform	3/4mm pattern board
Twist Locks	12 pcs container lock
Axles	3 pcs, 13T16T, BPW/FUWA /DERUN
King Pin	2 or 3.5 inch
Leaf Spring	90*13-10layer, 6 sets
Suspension system	Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type)
Tire	12R22.5, 12.00R20,315/80R22.5,12 pcs
Landing Gear	Standard 28Ton, JOST brand
Brake system	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional
Electrical system	1. Voltage:24V, LED lights
	2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
	3. Receptacle: 7 wires

Flatbed Semi Trailer Feature And Application

Derun Vehicle flatbed semi-trailer is made of high-strength and lightweight materials, which ensures the load bearing and reduces the deadweight at the same time. Equipped with advanced suspension system to ensure smooth driving. With excellent braking performance, it can stop safely in emergencies. The body design is flexible and adaptable to the complex road conditions in the Middle East. Suitable for bulk cargo, engineering projects, logistics warehousing and special cargo transport. It is an important force for logistics transport in the Middle East.

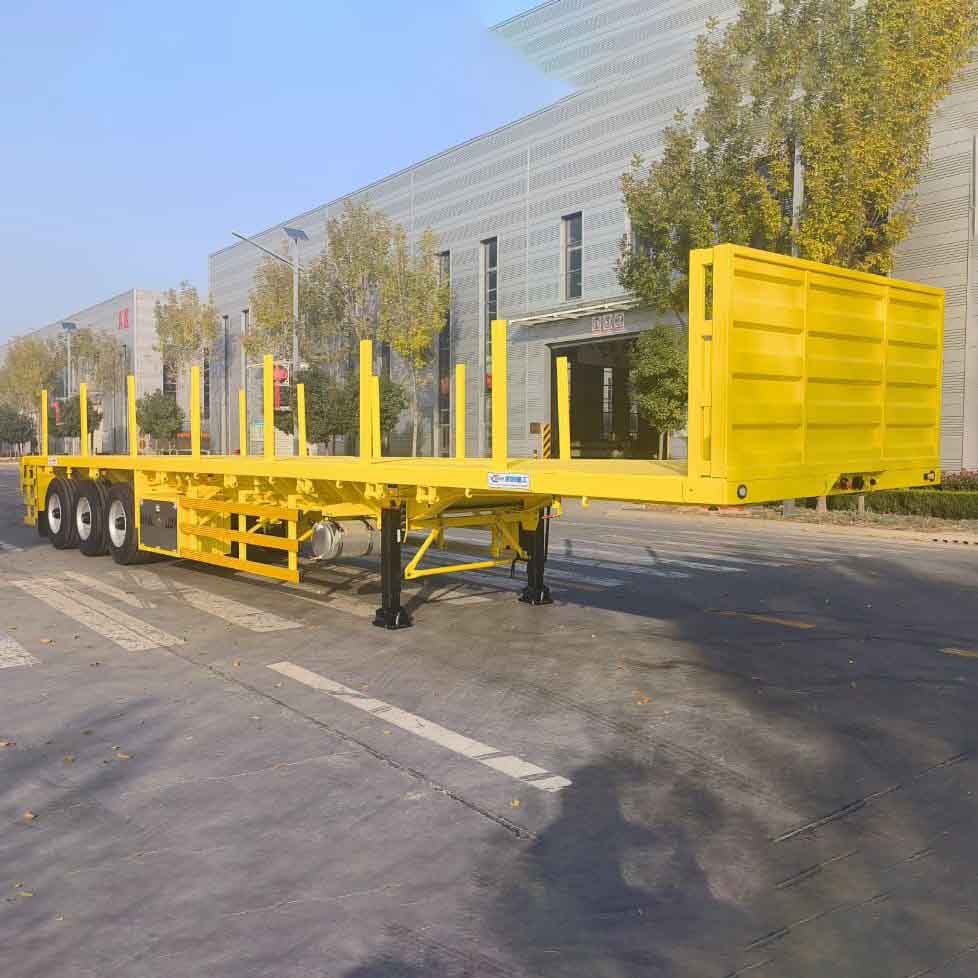

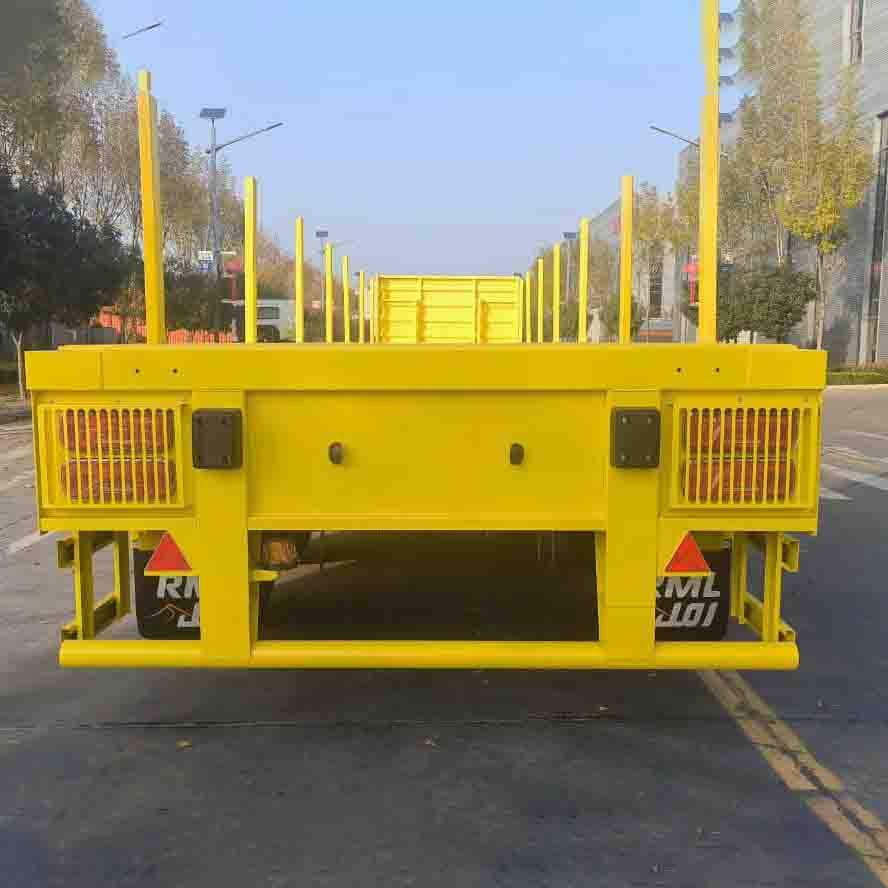

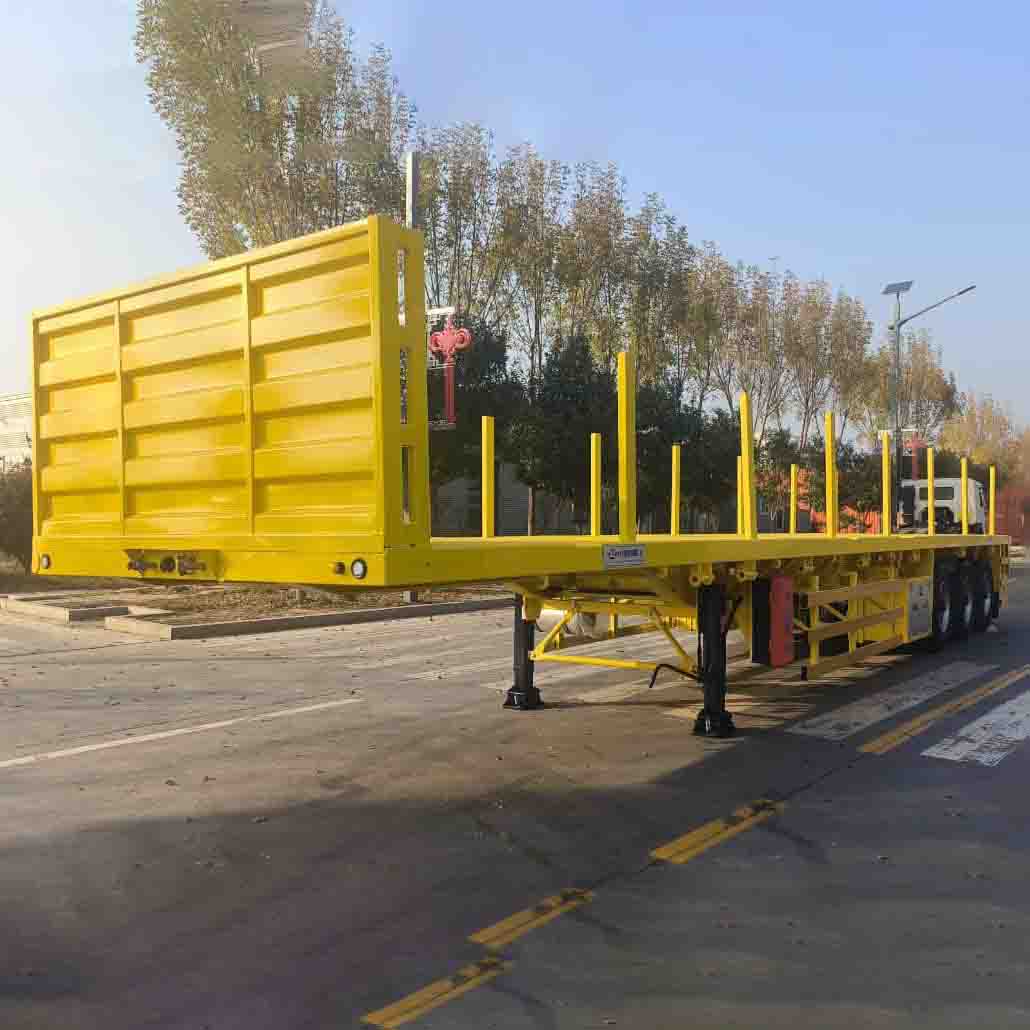

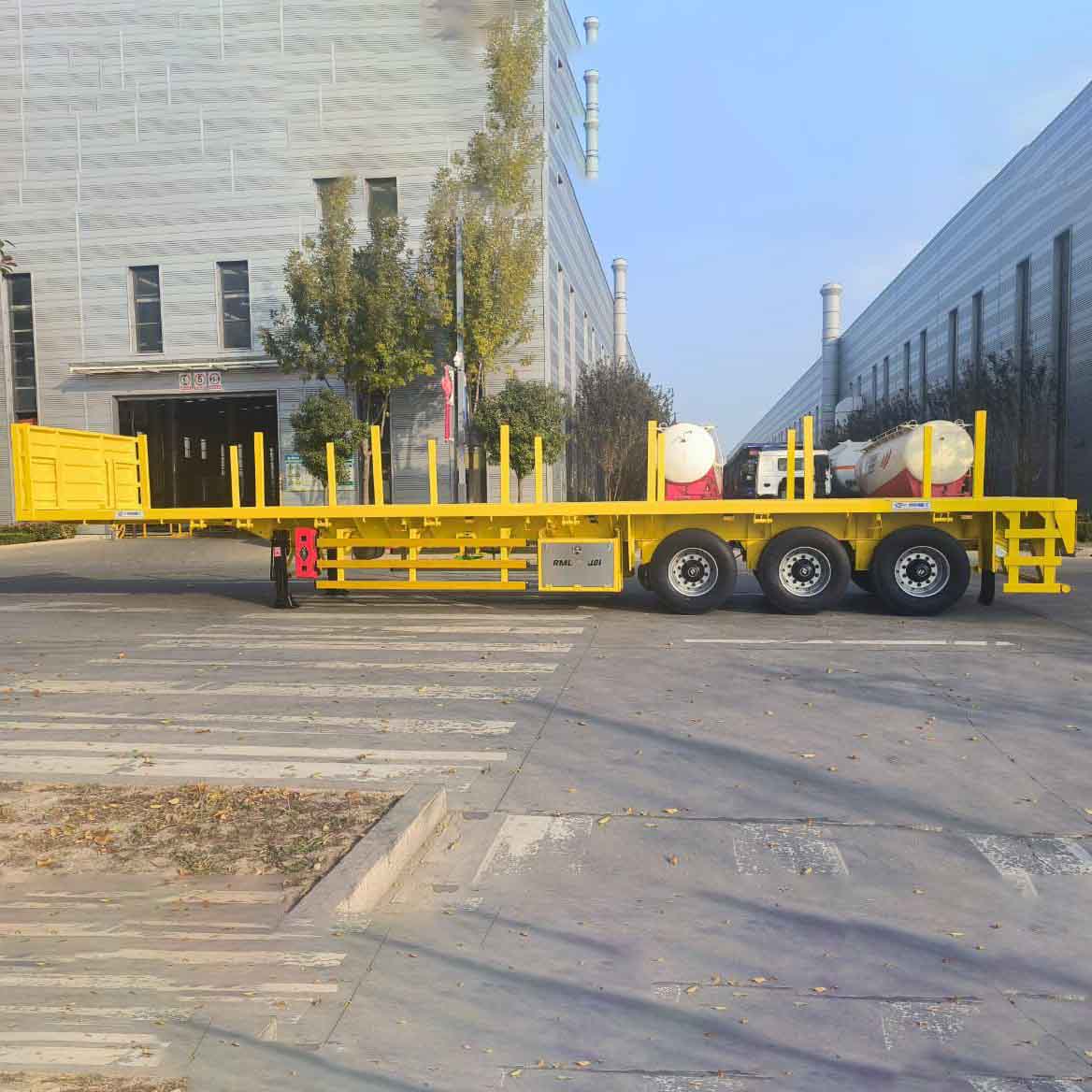

Flatbed Semi Trailer Details

The Derun flatbed semi-trailer has a length of 13 metres, a width of 2.8 metres and a height of 1.65 metres, making it easy to drive flexibly in a wide range of road conditions. The vehicle is designed with 3-axle configuration and equipped with 8.25R20 tyres to provide stable support and excellent grip to ensure driving safety. With a gross mass of 40 tonnes and a rated load capacity of 33 tonnes, it fully meets the demand for bulk cargo transport in the Middle East market.
