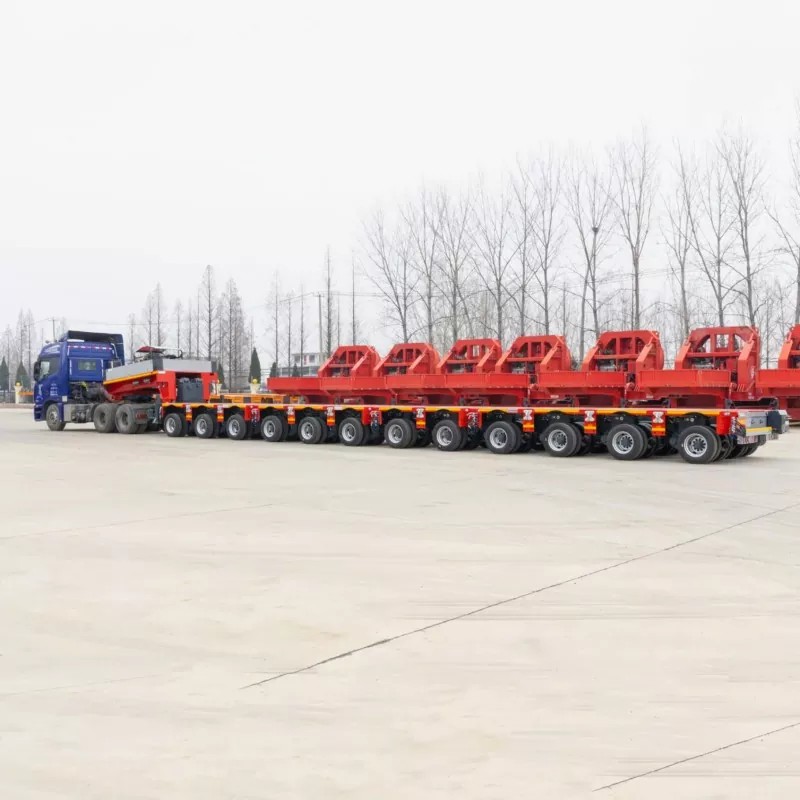

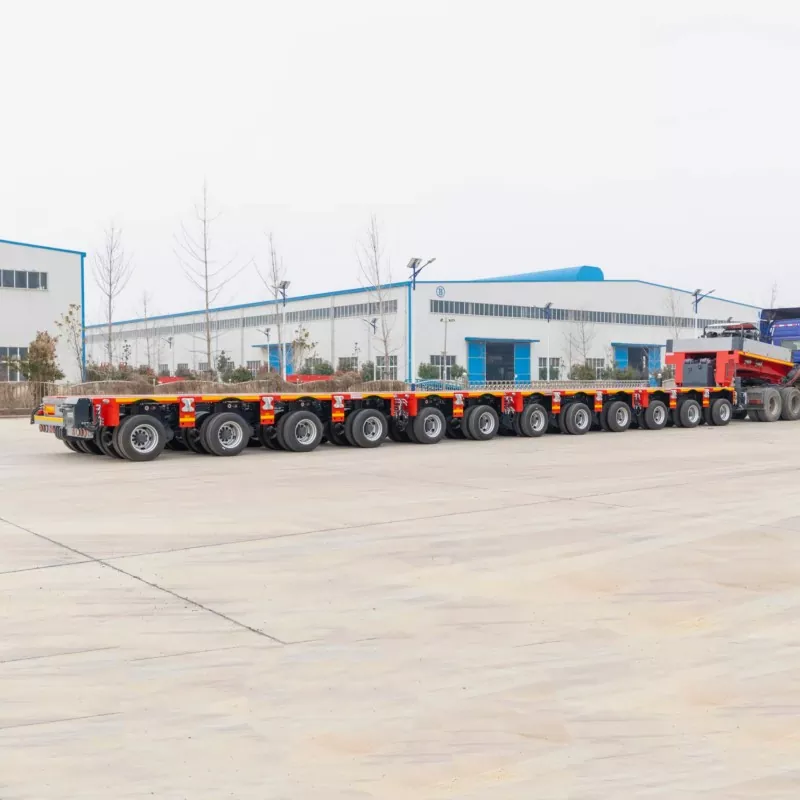

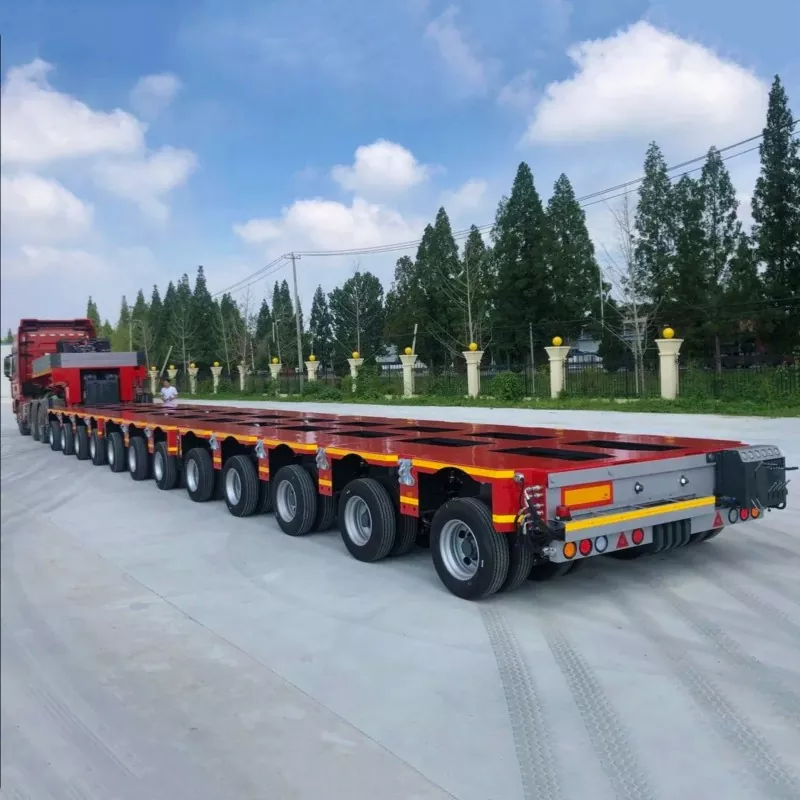

Multi Axle Hydarulic Modular Trailer

DERUN is a renowned manufacturer and supplier of multi axle hydraulic modular trailers in China. Our factory is expert in producing such trailers. Feel free to purchase multi-axle hydraulic modular trailers from DERUN. We respond to every customer inquiry within 24 hours.

Send Inquiry

Product Description

The multi axle hydraulic modular trailer designed by DERUN is a highly adaptable solution for transporting loads that exceed the size and weight limits of standard trailers. With its ability to be configured in a variety of ways and its advanced hydraulic system, this trailer ensures that even the most challenging loads can be moved safely and efficiently.

Multi Axle Hydraulic Modular Trailer Introduction

Designed for the toughest logistical tasks, DERUN multi axle hydraulic modular trailer features a modular frame that can be customized to meet the specific requirements of each shipment. The trailer can be extended or retracted and individual modules can be added or removed to adjust the overall length and width. Hydraulics allow precise control of the trailer's movement, enabling it to easily traverse tight spaces and uneven terrain.

Multi Axle Hydraulic Modular Trailer (Specification)

Wheel Base	1550mm
Wheel Track	735/1820mm
Tyre Qty	8 pieces/each axis
Tyre Spec	215/75R17.5
Rim Spec	6.0-17.5
Cargo bed width	2990mm
Cargo platform height (middle heavy load)	1070mm
suspension travel	±300mm
Steering mechanism	All-wheel hydraulic traction steering or control steering
Frame main material	Q550D
Maximum turning angle in the first round	55°
Frame form	flat grid format
Cargo platform support method	Three-point support or four-point support
The effective load capacity of each axis	22.5 tons (18km/h)

Multi Axle Hydraulic Modular Trailer Feature And Application

In the heavy transportation sector, DERUN multi axle hydraulic modular trailer is a vital asset for transporting a wide range of heavy equipment and machinery. This includes construction cranes, industrial presses, generators and wind turbine components. Its flexibility makes it suitable for a wide range of environments, from urban construction sites to remote areas where conventional trailers are difficult to maneuver.

Multi Axle Hydraulic Modular Trailer Details

DERUN multi axle hydraulic modular trailer features a series of independent axles that can be linked together to form a unit capable of carrying a large payload. Each axle is equipped with its own hydraulic suspension that can be individually adjusted to maintain optimum ground clearance and weight distribution. The trailer has a sophisticated steering system that allows for lateral movements and sharp turns, which are essential when traveling on narrow roads or in restricted areas.
