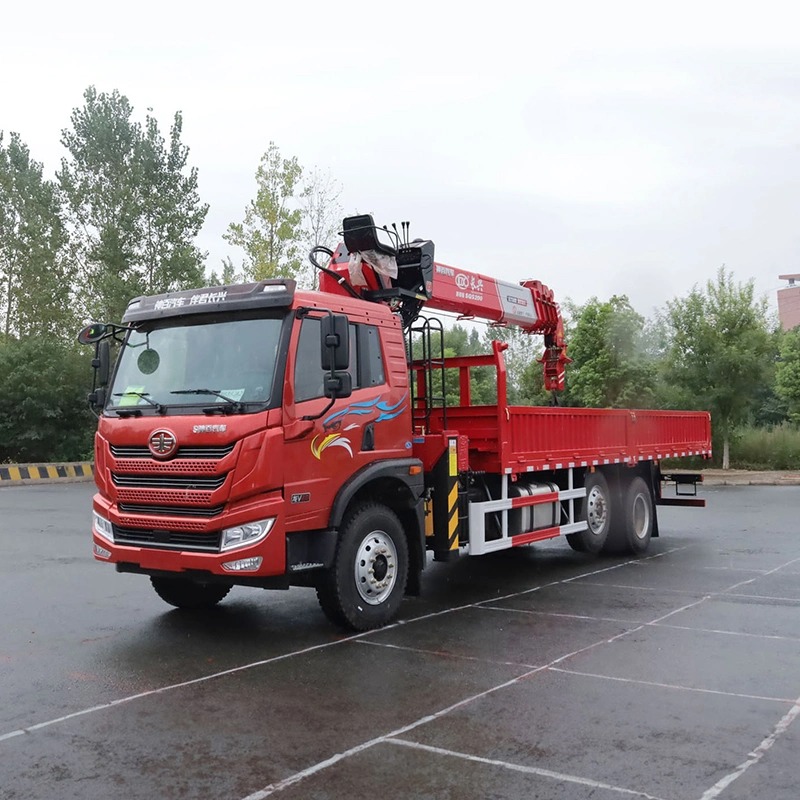

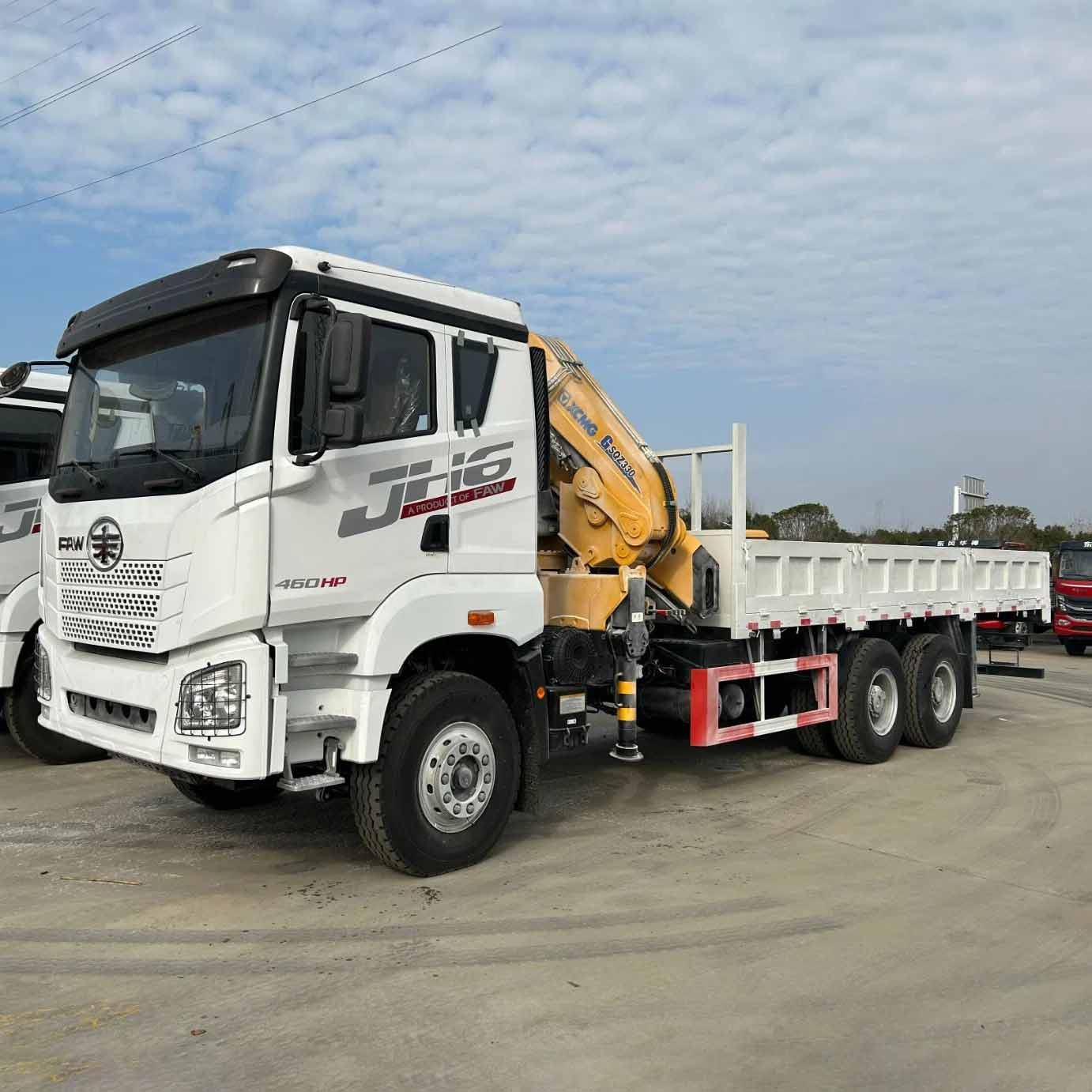

FAW J6P 6X4 350PS Crane Truck

FAW 6X4 truck-mounted crane, with its excellent performance and reliable quality, has won wide recognition in the market. This truck-mounted crane not only shows the atmospheric and steady style in appearance, but also shows the powerful lifting capacity and good driving experience in performance.

FAW J6P 6X4 350PS Crane Truck Description

FAW 6X4 truck-mounted crane adopts streamlined design, and the overall appearance is atmospheric and fashionable. The body lines are smooth, presenting a sense of power and beauty coexisting visual effect. The cab is spacious and bright with a wide field of vision, providing a comfortable driving environment for the driver. Meanwhile, the anti-rust treatment and anti-corrosion design of the body ensures the long-term stable operation of the vehicle in harsh environments.

FAW J6P 6X4 350PS Crane Truck Introduction

FAW 6X4 truck-mounted crane adopts 6X4 drive, equipped with multi-gear transmission, adapting to a variety of road conditions. Equipped with high-performance diesel engine, it provides strong power and environmental protection and energy saving. Excellent lifting capacity and advanced crane control system ensure safe and efficient operation.

Medium-sized body, durable chassis, advanced suspension and braking system to enhance driving stability. Equipped with high quality tyres and sensitive braking system, it can quickly slow down and stop in emergency.

FAW J6P 6X4 350PS Crane TruckSpecification

Products Technical Specification
Product Name		FAW J6M 6*4 Truck with crane
Chassis Model		CA5250
Fuel type		Diesel
Emission Standard		Euro 4
Cabin		J6M Half row With A/C
Whole Vehicle  main dimensions (mm)	Overall dimensions (L×W×H)	11975*2495*3700
	Cargo bady dimensions	8000*2300*800
	Wheel base	5800+1350
	Front overhang	1400
	Rear  overhang	3425
	Min. ground clearance	540
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	15250
	Max payload	20000-25000
Whole vehicle  main performance	Max. speed (km/h)	98
	Max. slope of climb (%)	30
Engine	Model	BF6M1013-28E4
	Maximum power	209kw / 280hp
	Number of cylinders	6
	Displacement (L)	7.146
	Engine Manufacturer	CHINA FAW.
Gear box	Model	CA10
	Number of gears	10 forward gears & 1 reverse
Rear axle	Rear Load capacity (ton)	11 Optional 13t
Suspension	Leaf spring	`11/11
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking with ABS
Electric device	Rated voltage	24V
Tyres & Quantity		11.00R20 & 10+1
Crane Description
Brand		SUNY
Type		Straight Crane
Model		SQ10SK3Q
Max Lifting Capacity (kg)		10000
Maximum lift height (m)		12
Max Lifting Moment (t.m)		25
Max Oil Flow of Hydraulic System (L/min)		63
Max Pressure of Hydraulic System (MPa)		26
Oil Tank Capacity (L)		160
Rotation Angle (°)		All Rotation
Crane Weight (kg)		3800
Installation Space (mm)		1150
Lifting capability diagram
Working radius (m)		2.5 / 4.5 / 7 / 9 / 12
Lifting capacity (kg)		10000 / 5500 / 3200 / 2300 / 1500

FAW J6P 6X4 350PS Crane TruckFeature And Application

FAW 6X4 truck crane is widely used in construction sites, logistics warehousing and municipal maintenance to improve construction and logistics efficiency. It also helps in landscaping and mining, handling heavy goods and equipment. All in all, this truck-mounted crane is a powerful assistant in many industries.

FAW J6P 6X4 350PS Crane Truck Details

FAW truck crane body design is strong, using high-strength steel, the crane system is equipped with advanced control system and transmission mechanism, the lifting arm can be retracted and rotated to meet a variety of operational needs. In terms of power, it is equipped with high-performance diesel engine to provide strong power.
Equipped with multiple safety systems, including braking, anti-skid, anti-tipping and other functions, to ensure safe operation. It can be customized and modified according to customers' needs, providing personalised service.
