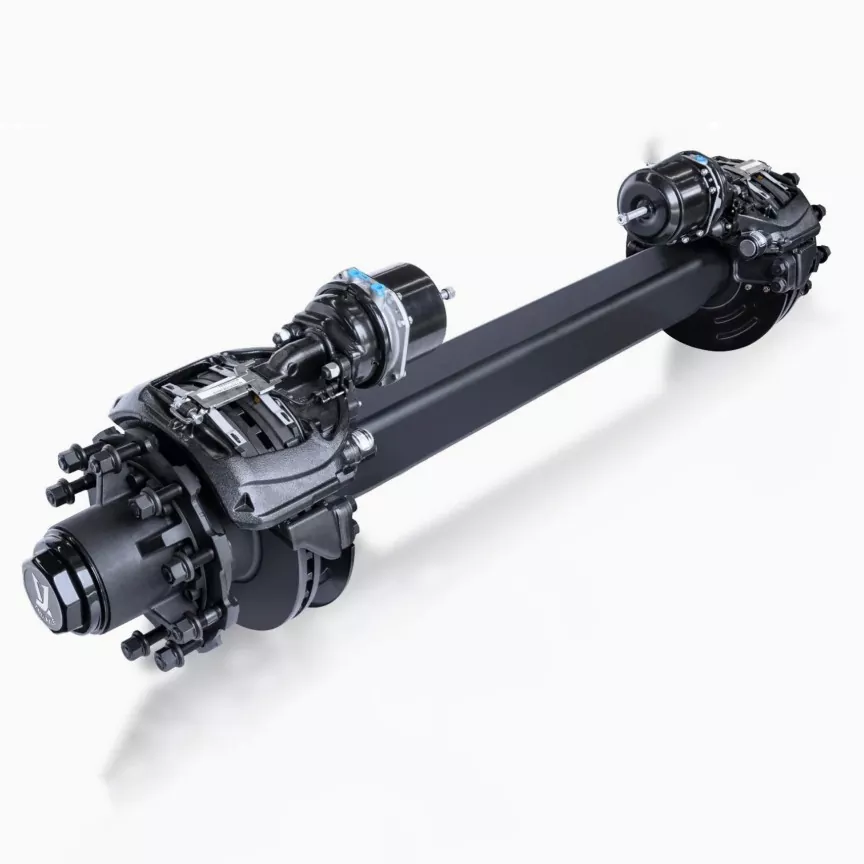

Disc Brake Trailer Axle

You are always welcome to purchase or have customized disc brake trailer axles from our factory whenever you need. We offer factory-direct discounted prices for our products. DERUN is a renowned manufacturer and supplier of disc brake trailer axles in China.

Send Inquiry

Product Description

DERUN high quality disc brake trailer axles stand out in the industry for their excellent braking capacity and reduced maintenance requirements. This axle type is increasingly being adopted by trailer manufacturers and operators who prioritize safety and operational efficiency. Disc brake trailer axles provide a cleaner, more durable and more efficient braking solution than traditional drum brakes.

Disc Brake Trailer Axle Introduction

DERUN disc brake trailer axle is engineered to provide superior braking performance. Unlike traditional drum brakes, which can overheat and cause braking failure, disc brake trailer axles utilize a caliper mechanism that applies friction directly to the wheels, resulting in faster response times and more controlled braking distances. This makes disc brake trailer axles the preferred choice for those who need reliable braking under varying conditions.

Disc Brake Trailer Axle (Specification)

MODEL	BEARING CAPACITY (t)	BRAKE	CENTRE DISTANCE OF BRAKE CHAMBER L4	AXLE BEAM	CENTER DISTANCE OF SPRING CASING L3
DR-B1056	13	420×180	392	©127	2970
DR-B 1057	13	420×180	388	127	2970
DR-B 1058	13	420× 200	372	©127	2970
DR-B 1059	13	420× 200	372	中127	2970
DR-B 1060	13	420×180	392	127	2970
DR-B 1061	13	420×180	388	127	2970
MODEL	CONNECTION BETWEEN RIM AND HUB			TRACK L2 (mm)	BEARING MODEL
MODEL	STUD	PCD D1	SEAM	TRACK L2 (mm)	BEARING MODEL
DR-B1056	10-M22×1.5	285.75	280.8	1840	HM220149/10
DR-B 1057	10-M22x1.5	335	280.8	1840	HM518445/10
DR-B 1058	10-M22×1.5	285.75	220.8	1840	HM518445/10
DR-B 1059	10-M22×1.5	335	280.8	1840	HM518445/10
DR-B 1060	10-M22×1.5	285.75	220.8	1840	HM220149/10
DR-B 1061	10-M22x1.5	335	280.8	1840	HM518445/10
MODEL	TOTAL LENGTH	WEIGHT	RECOMMENDE
DR-B1056	2180	345	7.50V-20
DR-B 1057	2180	365	7.50V-20
DR-B 1058	2180	348	7.50V-20
DR-B 1059	2180	360	7.50V-20
DR-B 1060	2180	340	7.50V-20
DR-B 1061	2180	358	7.50V-20

Disc Brake Trailer Axle Feature And Application

In the logistics sector, DERUN disc brake trailer axle is widely adopted for their ability to handle frequent stops and heavy loads. For construction companies that need to run trailers through rough terrain, disc brake trailer axles provide the necessary braking power and durability. Recreational vehicle enthusiasts can also benefit from the increased safety and reliability provided by disc brake trailer axles when towing a boat or camper.

Disc Brake Trailer Axle Details

DERUN disc brake trailer axle is made from strong materials that are durable and can withstand the stress of heavy loads and continuous use. The design of the caliper and rotor ensures that consistent pressure is applied, resulting in even wear and reliable braking performance. Many disc brake trailer axles are designed with ease of maintenance in mind, with accessible components and simple repair procedures.
