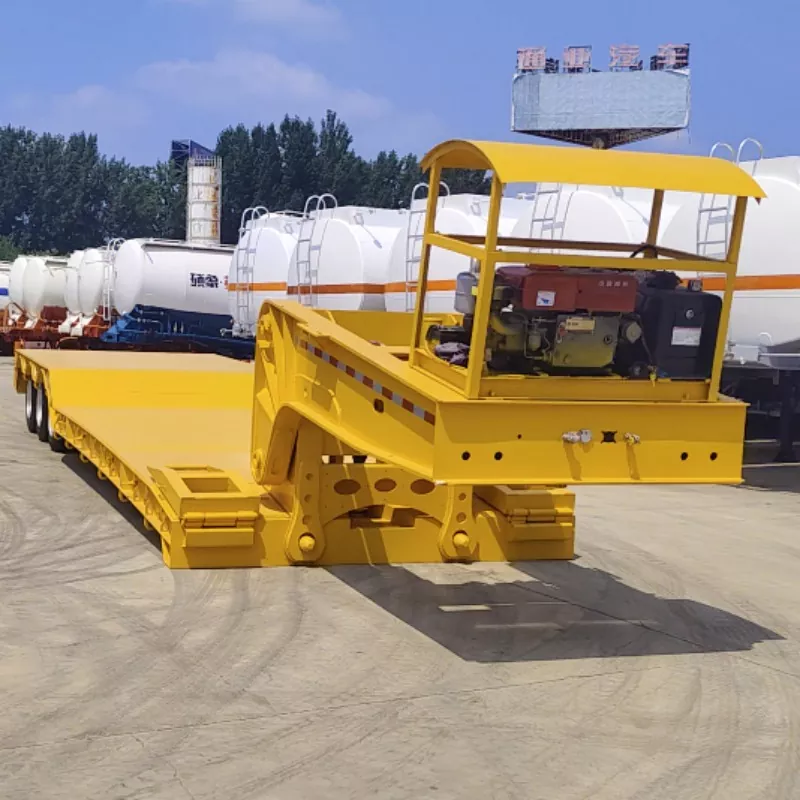

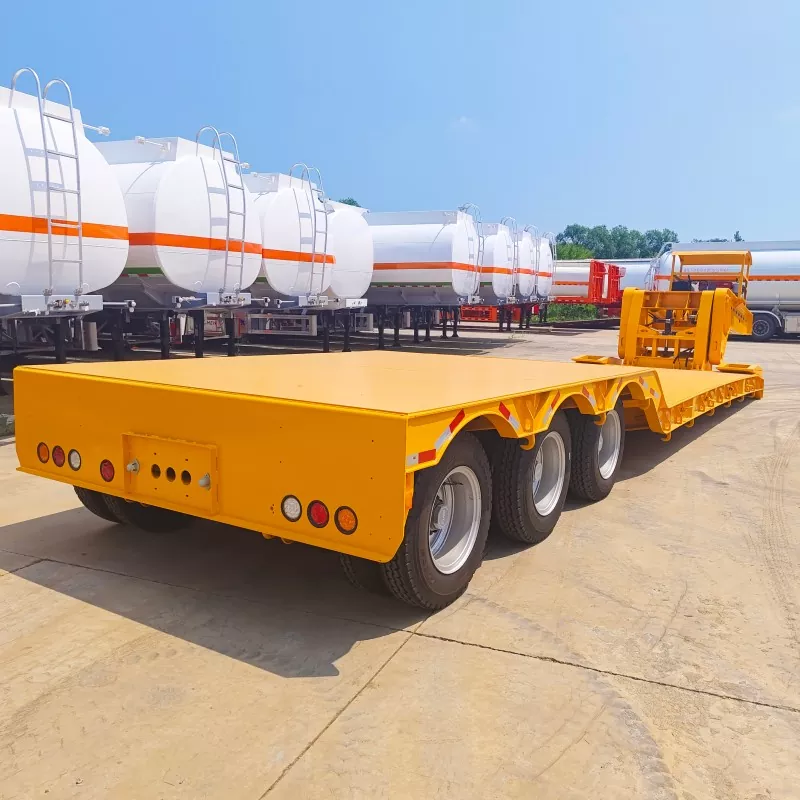

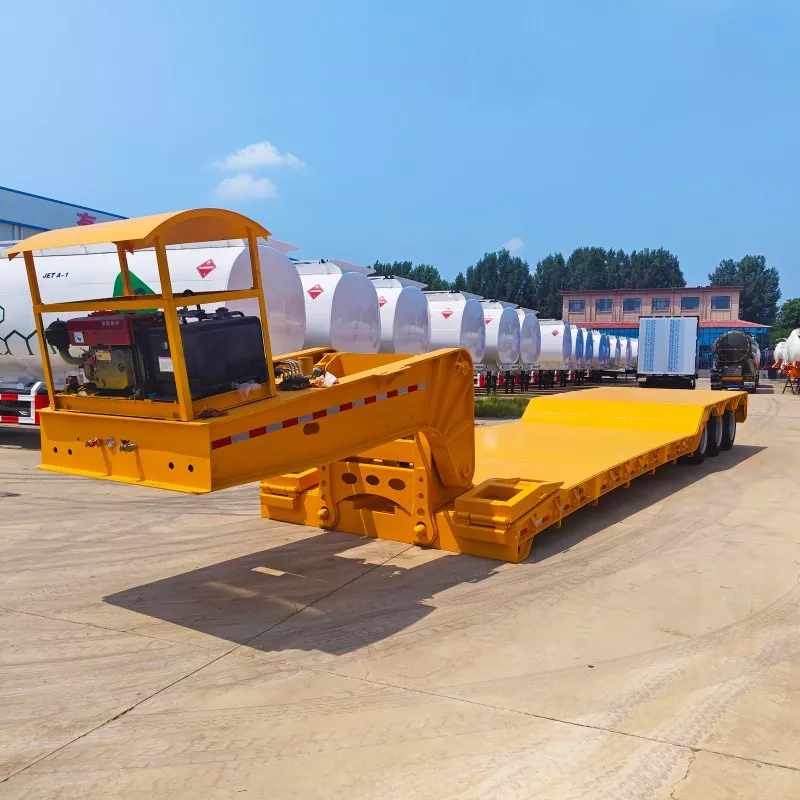

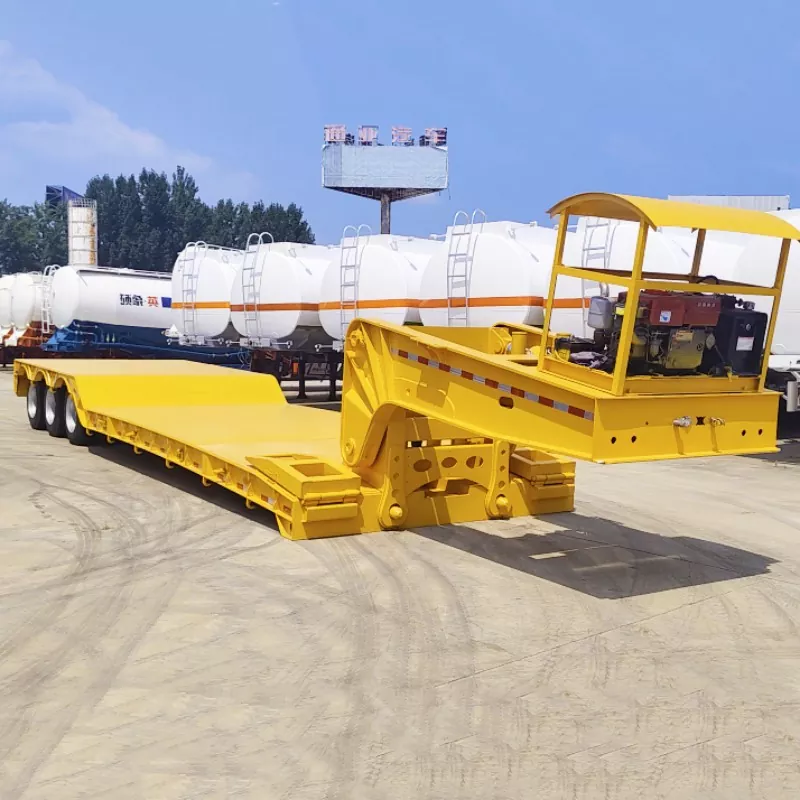

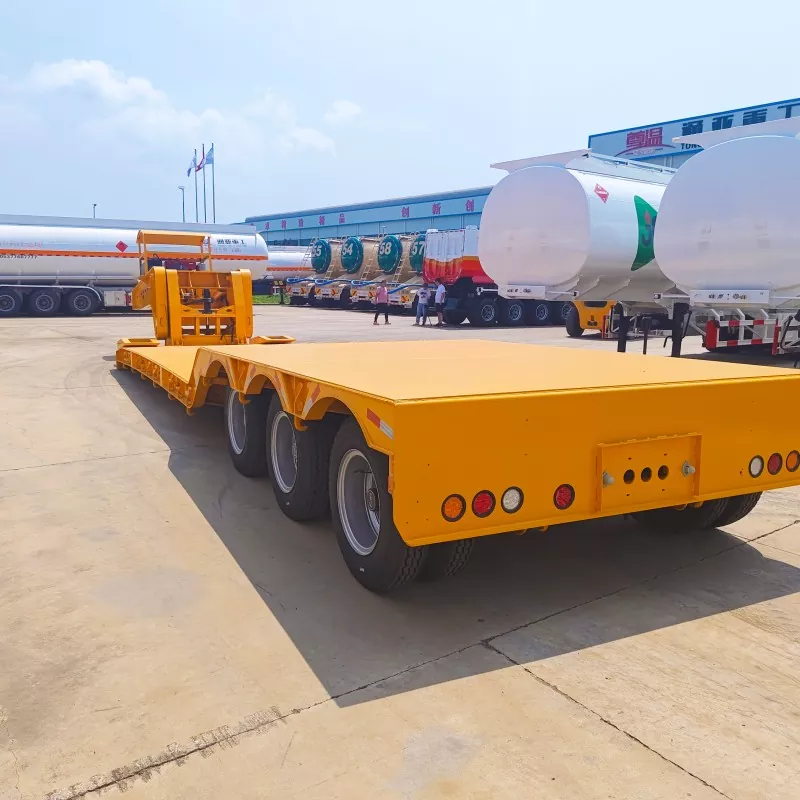

Detachable Gooseneck Low Bed Trailer

DERUN is a renowned manufacturer and direct supplier of detachable gooseneck low bed trailer in China, specializing in the production of specialized trailers designed to provide flexible transportation solutions for heavy and oversized cargoes. DERUN utilizes advanced manufacturing techniques and strict quality control measures to ensure that each trailer meets high standards of reliability and performance. Whether traveling on narrow city streets or through rugged rural landscapes, demountable gooseneck low bed trailer provides the performance required for challenging logistics operations.

Send Inquiry

Product Description

DERUN detachable gooseneck low bed trailer stands out for its versatility in handling a wide range of cargo sizes and weights. The trailer is designed to provide a low loading angle for easy loading and unloading of heavy equipment such as construction machinery, wind turbine components or large farm implements. The removable gooseneck feature provides greater maneuverability and adaptability in a variety of work environments.

Detachable Gooseneck Low Bed Trailer Introduction

DERUN detachable gooseneck low bed trailer features a rugged structural design that ensures durability and reliability when transporting loads that require specialized equipment. The gooseneck section can be removed from the trailer body, providing an unobstructed path for loading large items directly onto the trailer bed. The design also helps to reduce the overall height of the load, which is essential for compliance with legal height restrictions on public roads.

Detachable Gooseneck Low Bed Trailer Parameter (Specification)

Dimension (Lx W x H)（mm）	13000*3000 or customized size
Curb Weight (KG)	9500
Loading Weight (KG)	60000-120000
Axle Brand	BPW/FUWA/DERUN
Axle Number	3
Suspension system	Mechanical/Air suspension
Leaf Spring	120x16 mm x 10 layers
Frame	The height of the beam is500mm, upper plate is 20mm, down plate is 20mm, middle plate is 12mm.according to the buyer’s requirement
Platform plate	5mm Diamond Plate
Tire Type	11.00R20 12.00R20 12R22.5
Traction Pin	50inch or 90inch
Spare Wheel Bracket	2 pieces
Tool Box	1 Unit
Landing Gear	28T load landing gear
Rear Ladder	Enhanced Mechanical Ladder
Brake system	Dual Line braking system, no ABS.
Brake air chamber	6 air chambers
Electrical system	24V,7 Pole plug, Tail lamp with turn signal, brake light & reflector, side lamp etc., One set 6-core standard Cable.
Painting	Color by customer’s requirement
Packing	Polish with wax before shipping
Delivery way	Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume.

Detachable Gooseneck Low Bed Trailer Feature And Application

DERUN detachable gooseneck low bed trailer is widely used in industries such as construction, agriculture and renewable energy. They are particularly useful when transporting items that require precise positioning or have restricted access. For example, on construction sites where space is at a premium, these trailers can be disassembled and left in place while the tractor moves to another location, simplifying the logistics of moving materials around the site.

Detachable Gooseneck Low Bed Trailer Details

DERUN detachable gooseneck low bed trailer is equipped with advanced features such as hydraulic suspension systems that provide a smoother ride for sensitive cargo. They typically include multiple axle configurations to evenly distribute weight and improve stability during transportation. Additionally, ramps are often built into the design of these trailers to ensure a safe and efficient loading and unloading process. The neck detachment mechanism is often quick and easy, allowing operators to configure the trailer to their specific needs.
