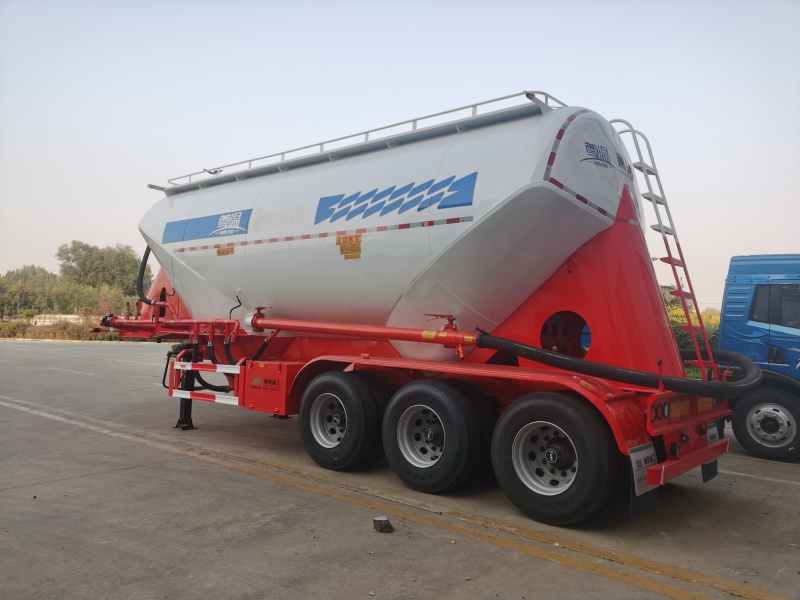

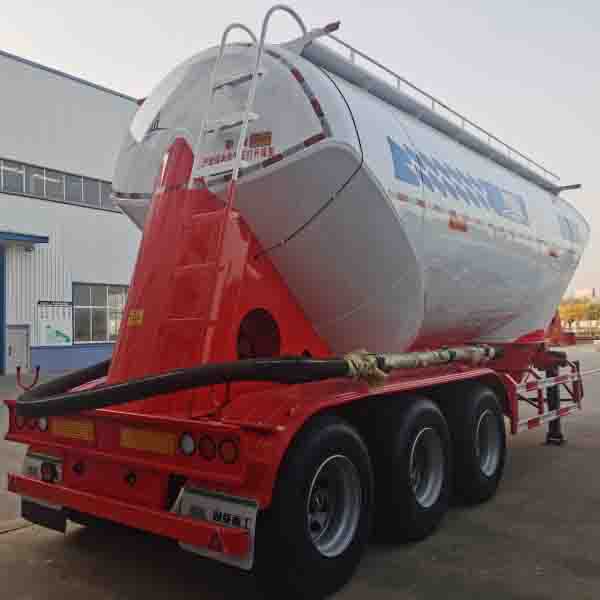

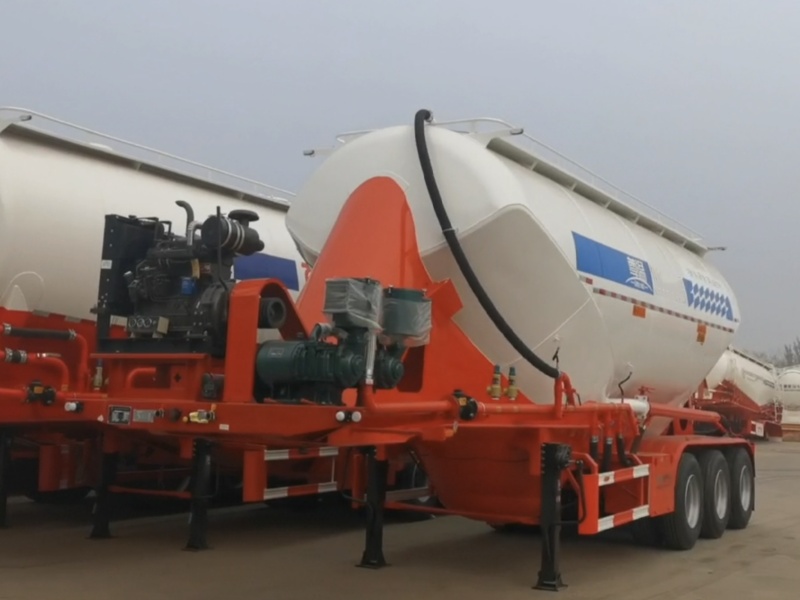

36CBM 3 Axles W Type Cement Bulk Carrier tanker Semi Trailer

W-shaped powder tanker is an efficient, safe and environmentally friendly special vehicle designed for powdery material transport. Its unique W-shaped structural design not only optimises the loading capacity and stability of the vehicle, but also greatly improves the efficiency and safety of material transport.

Model:QDR9550TDG

Send Inquiry

Product Description

W-shaped powder tanker is an efficient, safe and environmentally friendly special vehicle designed for powdery material transport. Its unique W-shaped structural design not only optimises the loading capacity and stability of the vehicle, but also greatly improves the efficiency and safety of material transport.

3 Axles W Type Cement Bulk Carrier tanker Semi Trailer Introduction

W-shaped powder tanker is specially designed for powder material transport, adopting W-shaped tank to improve stability and loading efficiency. Built-in fluidised bed and airflow distribution system ensures smooth discharge of materials. Equipped with intelligent control system to realise remote monitoring and automatic operation. Made of high strength material, corrosion resistant and durable.

3 Axles W Type Cement Bulk Carrier tanker Semi TrailerDetails

The tank body of W-shaped powder tanker is welded with high-strength steel plate to form two mutually symmetrical W-shaped tanks, this design not only increases the strength and rigidity of the tank, but also makes the tank have better stability and anti-rollover ability in the transport process. The body adopts streamline design, which reduces the air resistance, lowers the fuel consumption, and improves the driving stability and riding comfort of the vehicle.

3 Axles W Type Cement Bulk Carrier tanker Semi Trailer Specification

Tare weight	10000kg
Size	10700mm2500mm4000mm
Volume	45M3
Tank body	Q235A/5mm steel sheet
End plate	Q235A/6mm. ball shape
Axle	3 axle
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs9013mm
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs
Discharge valve	4"disc valve
Discharge pipe	4"seamless steel tube
Outlet pipe	4"rubber hose.6m
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating, heavy duty landing gear 24T
Air compressor	37 KW, 0.2Mpa. 1000r/Min
Compartment	Single
Braking system	WABCO RE6 relay valve; T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Air-charging system	2"main hole.2"check valve .1.5"safe valve. 0.4Mpa.gauge
Quadratic blow	1" diameter check valve
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

3 Axles W Type Cement Bulk Carrier tanker Semi Trailer Feature And Application

The vehicle is widely used in the road transport of powdery materials such as cement, fly ash, lime, gypsum, etc. It is an indispensable transport tool for building materials, chemical industry, electric power and other industries.

3 Axles W Type Cement Bulk Carrier tanker Semi Trailer Details

The tank is made of high-strength steel plate and advanced welding technology, with high strength and good sealing, ensuring the safety and stability of materials in the transport process. The vehicle is also equipped with pneumatic braking system and ABS anti-lock braking system, the tank is equipped with internal dust removal device, which effectively prevents the dust phenomenon during the loading and unloading of materials, the vehicle is equipped with an intelligent control system, which can real-time monitor the status of the materials in the tank and the vehicle's operating status, and provide drivers with accurate operational guidance.
