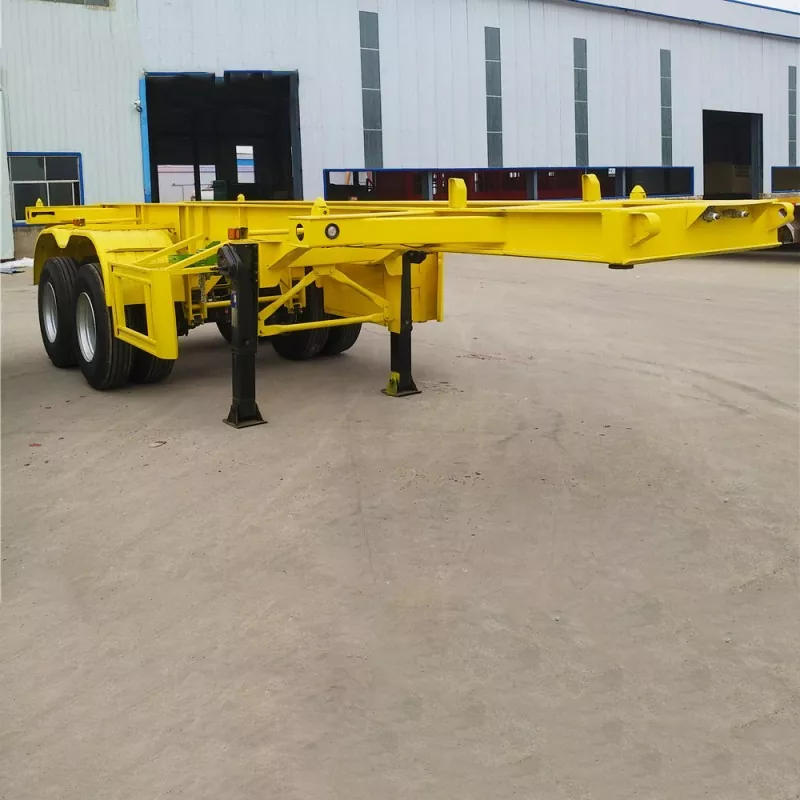

DERUN 20FT skeletal container trailer is an essential part of the logistics chain, designed to facilitate the fast and efficient transportation of cargo containers. With a focus on flexibility and ease of maneuverability, this trailer is designed to meet the needs of short-haul container transport, ensuring that cargo arrives at its destination in a safe and timely manner.
DERUN 20FT skeletal container trailer is characterized by its streamlined design featuring a skeleton frame that provides strength without excess weight. This design allows the trailer to easily maneuver through congested areas and narrow streets. The skeleton frame is typically made of high-strength steel or aluminum, ensuring long life and resistance to wear and tear. In addition, DERUN 20FT skeletal container trailer is equipped with a locking mechanism that holds the container securely in place during transportation, preventing any movement that could cause damage or accidents.
Dimension (L×WxH) |
14100*2500*4000mm |
Function |
Transport 2*20ft and 1*40ft container |
Tire |
12.00R22.5; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
Suspension |
Mechanical suspension (Germany type or America type) or Air suspension |
Leaf Spring |
90(width)mm*13(thickness)mm*10 layer (especial for exporting market) |
King pin |
Jost brand 2.0 or 3.5 inch |
Main beam |
Q345B steel |
Side beam |
16mm channel steel (Material is Q235B steel) |
In the dynamic world of freight transportation, DERUN 20FT skeletal container trailer plays a vital role, especially in environments where space is at a premium. Its compact size makes it ideal for urban distribution centers and smaller ports where larger trailers may face mobility challenges. The trailer's adaptability to a variety of loading and unloading procedures makes it a versatile tool for both inland and coastal shipping activities. For example, in the retail sector, the 20FT skeleton container trailer can quickly move goods from warehouse to retail store, streamlining the supply chain and reducing lead times.
DERUN 20FT skeletal container trailer has a number of features that enhance its functionality and safety. The trailer's frame is designed with a low-profile chassis to ensure optimum stability, while torsion locks provide a secure connection to the container. Suspension systems, usually air or spring-assisted, ensure a smooth ride quality and help protect cargo from damage caused by rough roads. Braking systems are vital for maintaining control, and 20FT skeleton container trailers are equipped with powerful brakes for safe stopping in a variety of conditions.
